LTV-224 Photocoupler

LITE-ON

Description

Photocoupler Product Data Sheet LTV-224 Spec No.:DS70-2010-0080 Effective Date: 12/03/2024 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
Photocoupler LTV-2X4-G series 1. Current transfer ratio (CTR) : MIN. High input-output is.

📥 Download Datasheet

LTV-224 Datasheet Preview — Preview of LTV-224 PDF

Datasheet Specifications

Part number: LTV-224
Manufacturer: LITE-ON
File Size: 1.34 MB
Datasheet: LTV-224-LITEON.pdf
Description: Photocoupler

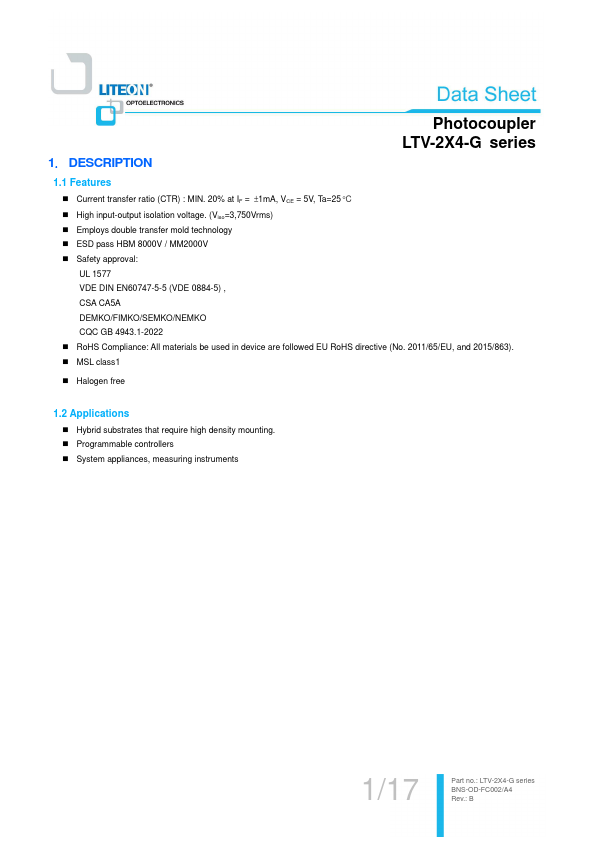

Features

* Current transfer ratio (CTR) : MIN. 20% at IF = ±1mA, VCE = 5V, Ta=25 oC
* High input-output isolation voltage. (Viso=3,750Vrms)
* Employs double transfer mold technology
* ESD pass HBM 8000V / MM2000V
* Safety approval: UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) , CSA CA5A DEMKO

Applications

* Hybrid substrates that require high density mounting.
* Programmable controllers

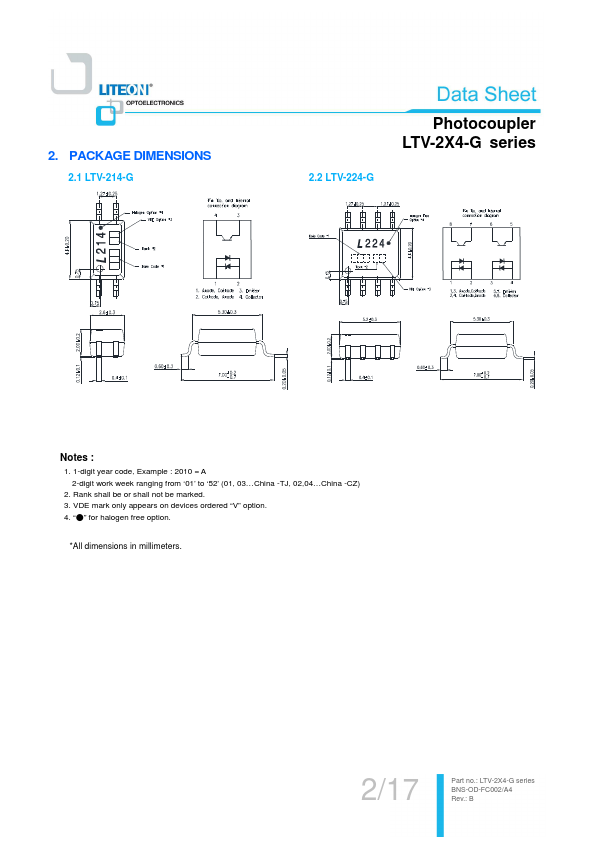

* System appliances, measuring instruments 1/17 Part no. : LTV-2X4-G series BNS-OD-FC002/A4 Rev. : B 2. PACKAGE DIMENSIONS 2.1 LTV-214-G 2.2 LTV-224-G Photocoupler LTV-2X4-G series Notes : 1. 1-digit y
