LTV-314W, LTV-314 Datasheet - LITE-ON

LTV-314W Photocoupler

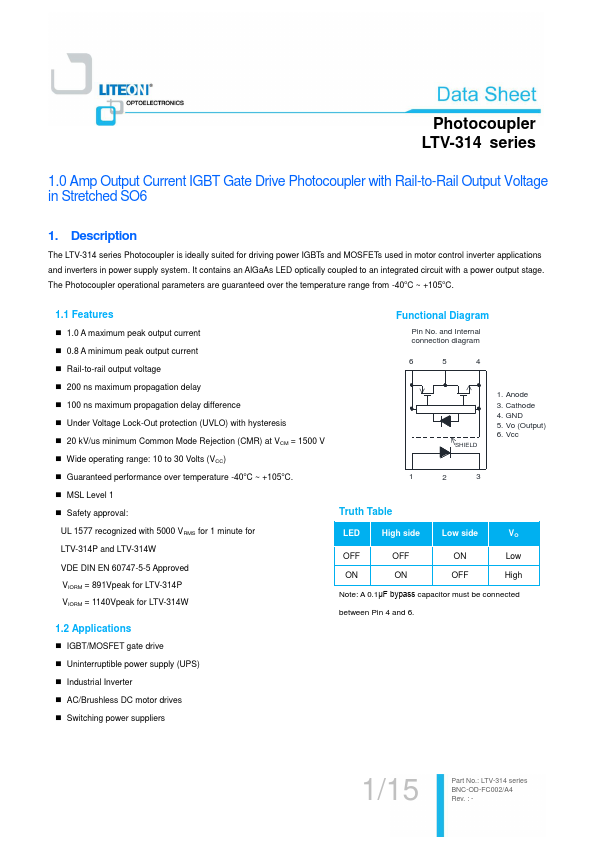

The LTV-314 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The Photocoupler operational paramet.

LTV-314W Features

* 1.0 A maximum peak output current

* 0.8 A minimum peak output current

* Rail-to-rail output voltage

* 200 ns maximum propagation delay

* 100 ns maximum propagation delay difference

* Under Voltage Lock-Out protection (UVLO) with hysteresis

* 20 kV/us minimum Common Mode

LTV-314-LITEON.pdf

LTV-314W Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-314W, LTV-314. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-314W, LTV-314

Manufacturer:

LITE-ON

File Size:

642.94 KB

Description:

Photocoupler.

Note:

This datasheet PDF includes multiple part numbers: LTV-314W, LTV-314.
Please refer to the document for exact specifications by model.
