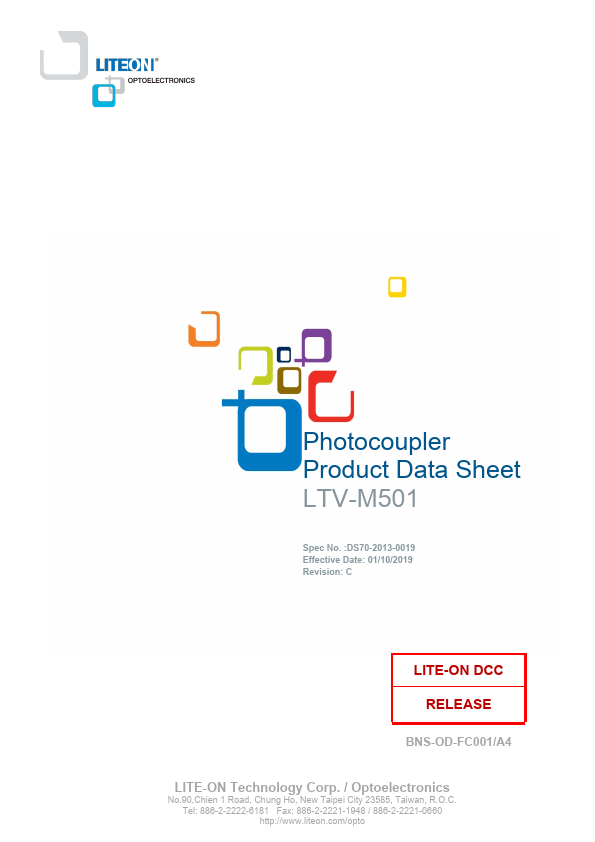

Photocoupler Product Data Sheet LTV-M501 Spec No.:DS70-2013-0019 Effective Date: 01/10/2019 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.

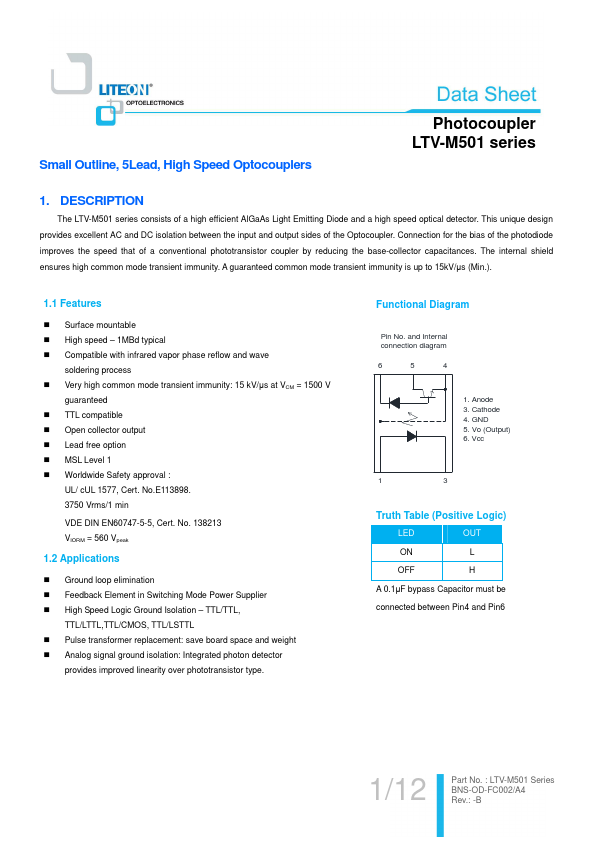

The LTV-M501 series consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.
Features
* Surface mountable High speed
* 1MBd typical Compatible with infrared vapor phase reflow and wave soldering process Very high common mode transient immunity: 15 kV/μs at VCM = 1500 V guaranteed TTL compatible Open collector output Lead free option MSL Level 1 Worldwide Safety approval : UL/ c
Applications
* Ground loop elimination Feedback Element in Switching Mode Power Supplier High Speed Logic Ground Isolation
* TTL/TTL, TTL/LTTL,TTL/CMOS, TTL/LSTTL Pulse transformer replacement: save board space and weight Analog signal ground isolation: Integrated photon detector provides improved linearit
