LTV-M701 - Photocoupler

Name: LTV-M701
SKU: LTV-M701-1586425

LITE-ON

📥 Download Datasheet

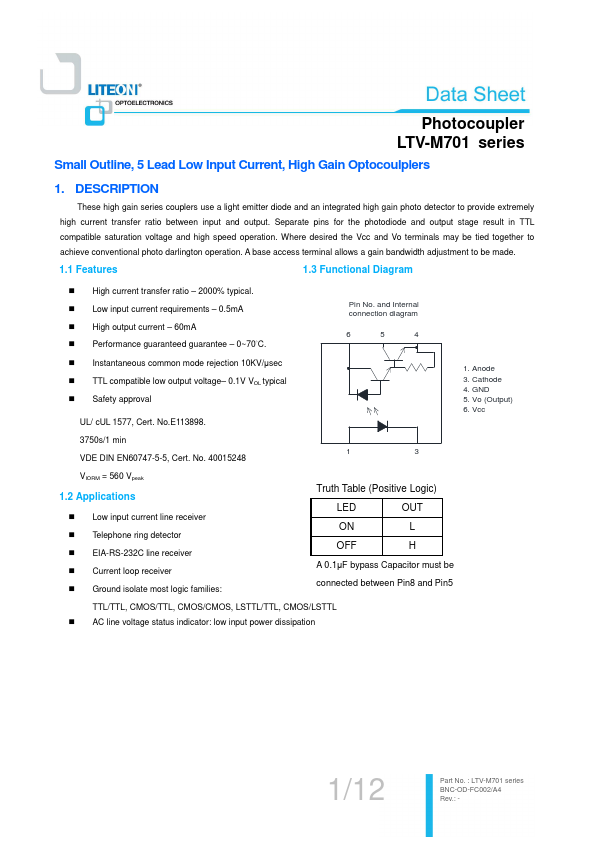

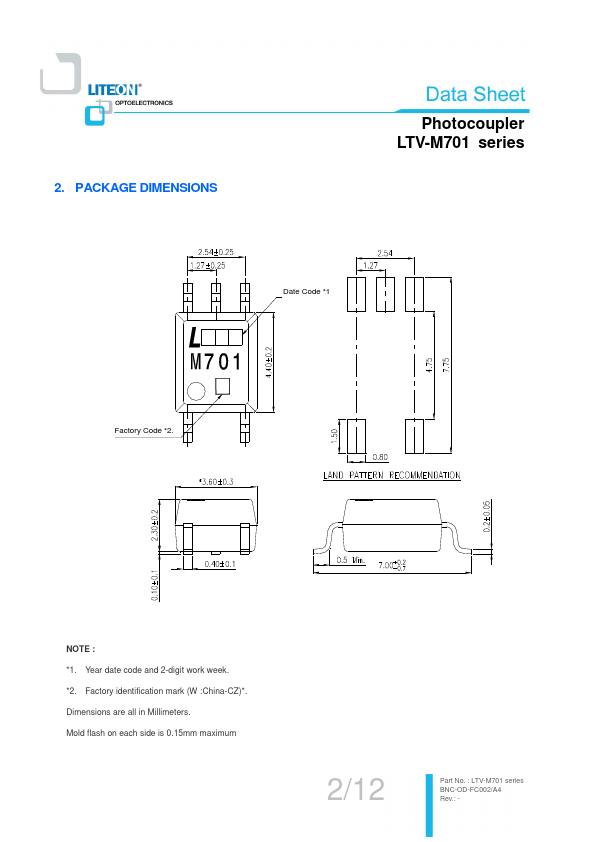

LTV-M701 Datasheet Preview — Preview of LTV-M701 PDF

Datasheet Details

Part number	LTV-M701
Manufacturer	LITEON
File Size	331.17 KB
Description	Photocoupler
Datasheet	LTV-M701-LITEON.pdf

LTV-M701 Product details

Description

These high gain series couplers use a light emitter diode and an integrated high gain photo detector to provide extremely high current transfer ratio between input and output.

Features

1.3 Functional Diagram High current transfer ratio.
2000% typical. Low input current requirements.
0.5mA High output current.
60mA Performance guaranteed guarantee.
0~70°C. Pin No. and Internal connection diagram 6 5 4 Instantaneous common mode rejection 10KV/μsec TTL compatible low output voltage.
0.1V VOL typical Safety approval UL/ cUL 1577, Cert. No. E113898. 1. Anode 3. Cathode 4. GND 5. Vo (Output) 6. Vcc 3750s/1 min VDE DIN EN60747-5-5,.
