LTV-M601 Photocoupler

LITE-ON

Description

Photocoupler Product Data Sheet LTV-M601 Series Spec No.:DS70-2013-0020 Effective Date: 02/15/2022 Revision: H LITE-ON DCC RELEASE BNS-OD-FC001/A4 LI.
The LTV-M601 series consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

📥 Download Datasheet

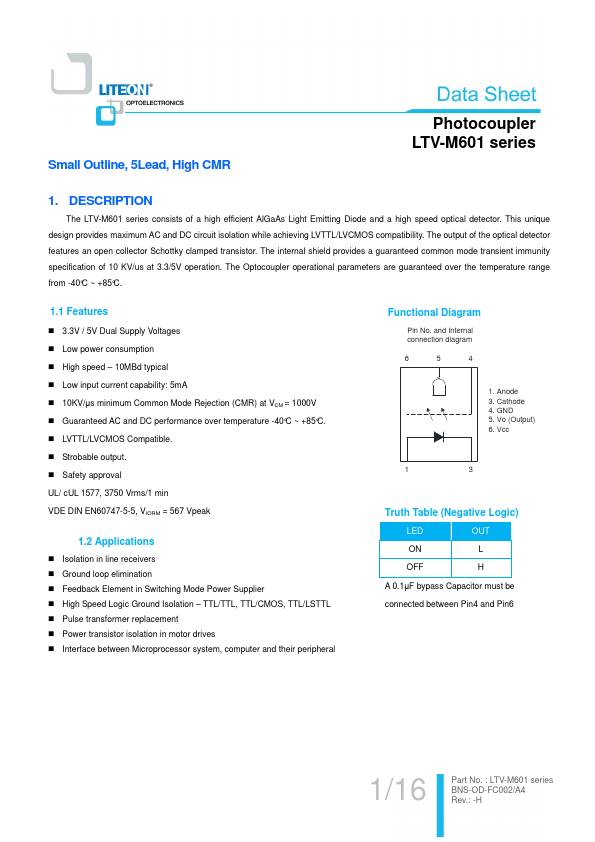

LTV-M601 Datasheet Preview — Preview of LTV-M601 PDF

Datasheet Specifications

Part number: LTV-M601
Manufacturer: LITE-ON
File Size: 405.67 KB
Datasheet: LTV-M601-LITEON.pdf
Description: Photocoupler

Features

* an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 10 KV/us at 3.3/5V operation. The Optocoupler operational parameters are guaranteed over the temperature range from -40°C ~ +85°C. 1.1 Features
* 3.3V / 5V Du

Applications

* Isolation in line receivers
* Ground loop elimination
* Feedback Element in Switching Mode Power Supplier
* High Speed Logic Ground Isolation
* TTL/TTL, TTL/CMOS, TTL/LSTTL
* Pulse transformer replacement
* Power transistor isolation in motor drives
* Interface
