LD7792S - Transition-Mode PFC and Quasi-Resonant Current Mode PWM Controller

LD7792S Description

LD7792S 08/06/2018 Transition-Mode PFC and Quasi-Resonant Current Mode PWM Controller REV: 00 General .
The LD7792S is the enhancement version of the LD7790, the audible noise produced during start-up & light load is greatly reduced and the THDi is also.

LD7792S Applications

* LED lighting The LD7792S is available in a SOP-16 package. Typical Application AC EMI Input Filter 8 12 11 9 PFCAUX PFCDRIVER PFCSENSE VOSENSE 16 HV 7 PFC ON/OFF FBDRIVER 13 LD7792S 6 PFCCOMP FBSENSE 10 1 VCC FBCOMP 3 4 FBAUX GND CT 2 14 OTP 5 photocoupler Leadtrend Technol

📥 Download Datasheet

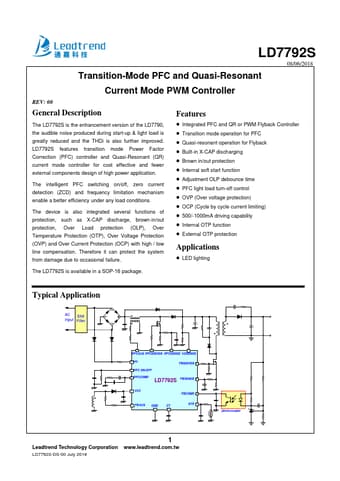

Preview of LD7792S PDF
