CGY2394SUH-C1 True Time Delay

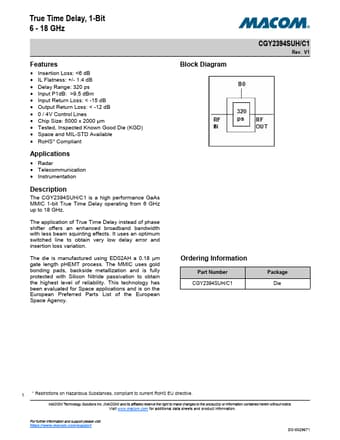

The CGY2394SUH/C1 is a high performance GaAs MMIC 1-bit True Time Delay operating from 6 GHz up to 18 GHz. The application of True Time Delay instead of phase shifter offers an enhanced broadband bandwidth with less beam squinting effects. It uses an optimum switched line to obtain very low delay er.

CGY2394SUH-C1 Features

* Insertion Loss: 9.5 dBm

* Input Return Loss: < -15 dB

* Output Return Loss: < -12 dB

* 0 / 4V Control Lines

* Chip Size: 5000 x 2000 µm

* Tested, Inspected K

CGY2394SUH-C1-MACOM.pdf
