CGY2021G DCS/PCS 2 W power amplifier

📥 Download Datasheet Datasheet Preview Page 1

Description

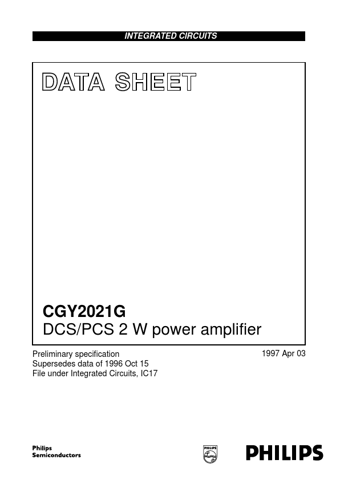

INTEGRATED CIRCUITS DATA SHEET CGY2021G DCS/PCS 2 W power amplifier Preliminary specification Supersedes data of 1996 Oct 15 File under Integrated Ci.
plastic low profile quad flat package; 48 leads; body 7 × 7 × 1.

📥 Download Datasheet

Preview of CGY2021G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Power Amplifier (PA) overall efficiency 50% (DCS)
* 34 dB gain
* 0 dBm input power
* Gain control range >50 dB
* Integrated power sensor driver
* Low output noise floor of PA

Applications

* Hand-held transceivers for DCS/PCS applications (DCS: 1710 to 1785 MHz and PCS: 1850 to 1910 MHz)
* 1800 MHz Time Division Multiple Access (TDMA) systems. QUICK REFERENCE DATA SYMBOL VDD IDD Po(max) Tamb Note 1. For conditions, see Chapters “AC characteristics” and “DC characterist
