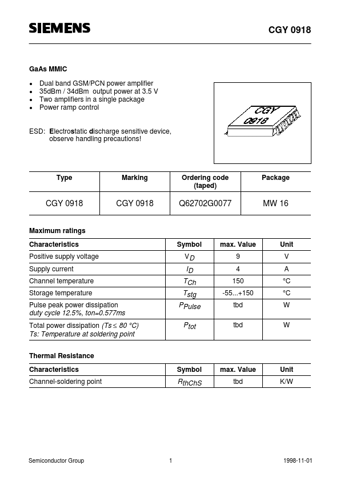

CGY 0918
GaAs MMIC
l l l l
Dual band GSM/PCN power amplifier 35dBm / 34dBm output power at 3.5 V Two amplifiers in a single package Power ramp control
ESD: Electrostatic discharge sensitive device, observe handling precautions!
Type
Marking
Ordering code (taped)
Package
CGY 0918
CGY 0918
Q62702G0077
MW 16
Maximum ratings Characteristics Positive supply voltage Supply current Channel temperature Storage temperature Pulse peak power dissipation duty cycle 12.5%, ton=0.577ms Total power dissipation (Ts ≤ 80 °C) Ts: Temperature at soldering point Thermal Resistance Characteristics Channel-soldering point Symbol max. Value tbd Unit K/W Symbol VD max. Value 9 4 150 -55...
