CGY0819 Datasheet - Siemens Semiconductor Group

CGY0819 - GaAs MMIC

3.9pF 0403 100pF 0402 5.6pF 0603 HQ 10pF 0603 HQ 10nF0402 1u0 1206 3.9pF 0603 HQ 33nF 0402 1nF 0402 5 5 Manufacturer Siemens Siemens AVX AVX Siemens 100p C12 C13 C14 C16 1u0 1u0 C11 L2 GND (backside MW16) 33 nH 100p C10 16 15 14 13 12 11 10 9 C6 RFout Cel C4 C5 100p C18 RFout PCS 1

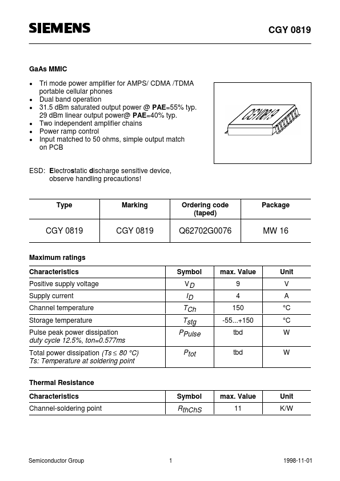

CGY 0819 GaAs MMIC l l l l l l Tri mode power amplifier for AMPS/ CDMA /TDMA portable cellular phones Dual band operation 31.5 dBm saturated output power @ PAE=55% typ.

29 dBm linear output power@ PAE=40% typ.

Two independent amplifier chains Power ramp control Input matched to 50 ohms, simple output match on PCB ESD: Electrostatic discharge sensitive device, observe handling precautions! Type Marking Ordering code (taped) Package CGY 0819 CGY 0819 Q62702G0076 MW 16 Maximum ratings C
