CGY2014 Datasheet, Amplifier, NXP

CGY2014 Features

  • Amplifier
  • Operates at 3.6 V battery supply voltage
  • Power Amplifier (PA) output power: 35 dBm in GSM band and 32.5 dBm in DCS/PCS band
  • Input power: 5 dBm in GSM band

PDF File Details

Part number:

CGY2014

Manufacturer:

NXP ↗

File Size:

73.97kb

Download:

📄 Datasheet

Description:

Gsm/dcs/pcs power amplifier. CGY2014ATW The CGY2014ATW is a dual-band GSM/DCS/PCS GaAs Monolithic Microwave Integrated Circuit (MMIC) power amplifier. The circu

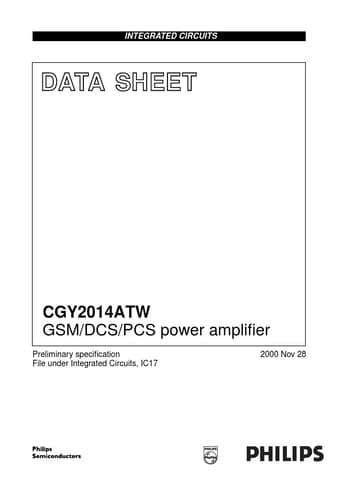

Datasheet Preview: CGY2014 📥 Download PDF (73.97kb)
Page 2 of CGY2014 Page 3 of CGY2014

CGY2014 Application

  • Applications
  • Dual-band systems: Low Band (LB) from 880 to 915 MHz hand-held transceivers for E-GSM and High Band (HB) from 1710 to 1910 MH
