CGY21 GaAs MMIC

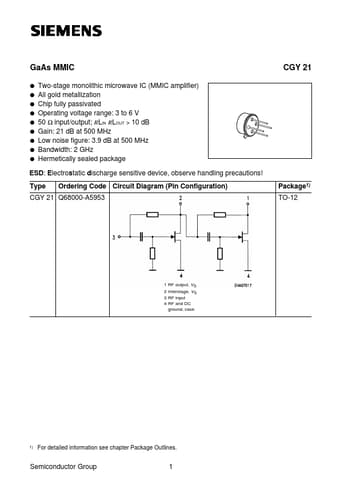

CGY 21 GaAs MMIC q q q q q q q q q CGY 21 Two-stage monolithic microwave IC (MMIC amplifier) All gold metallization Chip fully passivated Operating voltage range: 3 to 6 V 50 Ω input/output; RLIN RLOUT > 10 dB Gain: 21 dB at 500 MHz Low noise figure: 3.9 dB at 500 MHz Bandwidth: 2 GHz Hermetically sealed package ESD: Electrostatic discharge sensitive device, observe handling precautions! Type Ordering Code Circuit Diagram (Pin Configuration) Package1) TO-12 CGY 21 Q68000-A5953 1 2 3 4 RF .

CGY21 Datasheet (130.46 KB)
