CMPA2060035D, Power Amplifier

CMPA2060035D 35 W, 2.0 - 6.0 GHz, GaN MMIC, Power Amplifier .
The CMP2060035D is a gallium nitride (GaN) high electron mobility transistor (HEMT) based monolithic microwave integrated circuit (MMIC).

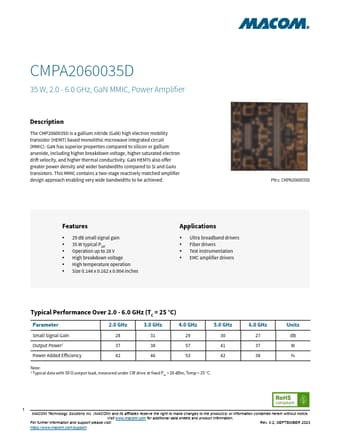

datasheet Preview Page 1 from Datasheet4u.com

CMPA2060035D-MACOM.pdf

CMPA2060035D Datasheet Preview — Preview of CMPA2060035D PDF

Datasheet Details

Part number:

CMPA2060035D

Manufacturer:

MACOM

File Size:

354.29 KB

Description:

Power Amplifier

Features

* 29 dB small signal gain
* 35 W typical PSAT
* Operation up to 28 V
* High breakdown voltage
* High temperature operation

Applications

* Ultra broadband drivers
* Fiber drivers
* Test instrumentation
* EMC amplifier drivers Typical Performance Over 2.0 - 6.0 GHz (TC = 25 °C) Parameter 2.0 GHz 3.0 GHz 4.0 GHz Small Signal Gain 28 31 29 Output Power1 37 38 57 Power Added Efficiency 42 4
