CMPA2738060F Datasheet - MACOM

Power Amplifier

CMPA2738060F Features

* Applications

* 35 dB Small Signal Gain

* 80 W Typical PSAT

* Operation up to 50 V

* High Breakdown Voltage

* Civil and Military Pulsed Radar Amplifiers VGA RFIN VGB

* High Temperature Operation

* 0.5” x 0.5” Total Product Size VDA RFOUT V

CMPA2738060F General Description

The CMPA2738060F is a packaged, high-power MMIC amplifier producing 85W of saturated output power over the 2.7 - 3.8 GHz frequency range. With 27dB of large signal gain and achieving 50% power-added efficiency or higher, the CMPA2738060F is ideally suited to support a variety of S-Band radar applica.

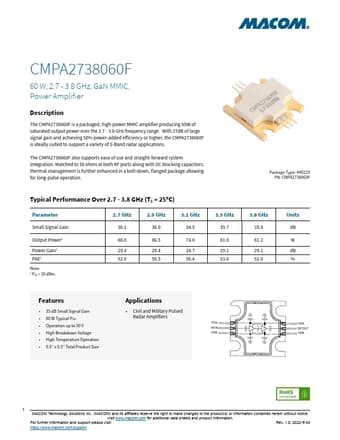

CMPA2738060F Datasheet (2.23 MB)

CMPA2738060F Datasheet Preview — Preview of CMPA2738060F PDF

Datasheet Details

Part number:

CMPA2738060F

Manufacturer:

MACOM

File Size:

2.23 MB

Description:

Power amplifier.
