CMPA2560025F - GaN MMIC Power Amplifier

Product Overview

MACOM

📥 Download Datasheet

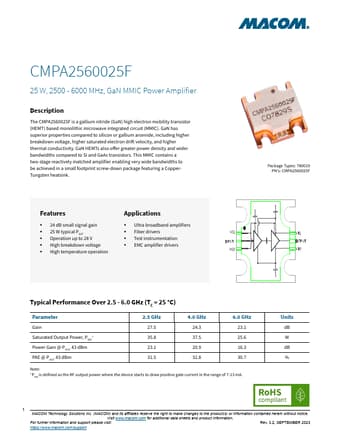

CMPA2560025F GaN MMIC Power Amplifier by MACOM - Datasheet Preview — Datasheet preview – CMPA2560025F

Datasheet Details

Part number	CMPA2560025F
Manufacturer	MACOM
File Size	1.07 MB
Description	GaN MMIC Power Amplifier
Datasheet	CMPA2560025F Datasheet
Additional preview pages of the CMPA2560025F datasheet.

Product details

Description

The CMPA2560025F is a gallium nitride (GaN) high electron mobility transistor (HEMT) based monolithic microwave integrated circuit (MMIC).

Features

24 dB small signal gain.
25 W typical PSAT.
Operation up to 28 V.
High breakdown voltage.
High temperature operation.
