CMPA2735015D Datasheet - MACOM

CMPA2735015D, Power Amplifier

CMPA2735015D 15 W, 2.7 - 3.5 GHz, GaN MMIC, Power Amplifier .
The CMPA2735015D is a gallium nitride (GaN) high electron mobility transistor (HEMT) based monolithic microwave integrated circuit (MMIC).

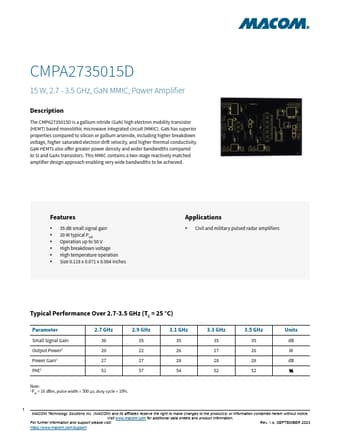

datasheet Preview Page 1 from Datasheet4u.com

CMPA2735015D-MACOM.pdf

CMPA2735015D Datasheet Preview — Preview of CMPA2735015D PDF

Datasheet Details

Part number:

CMPA2735015D

Manufacturer:

MACOM

File Size:

473.08 KB

Description:

Power Amplifier

Features

* 35 dB small signal gain
* 20 W typical PSAT
* Operation up to 50 V
* High breakdown voltage
* High temperature operation

Applications

* Civil and military pulsed radar amplifiers Typical Performance Over 2.7-3.5 GHz (TC = 25 °C) Parameter Small Signal Gain Output Power1 Power Gain1 PAE1 2.7 GHz 36 20 27 51 2.9 GHz 35 22 27 57 3.1 GHz 35 26 28 54 Note: 1 PIN = 16 dBm, pulse width = 500 μs; duty cycle = 10%. 3.3 GHz 3
