MT4953A Dual 30 P-Channel Power MOSFET

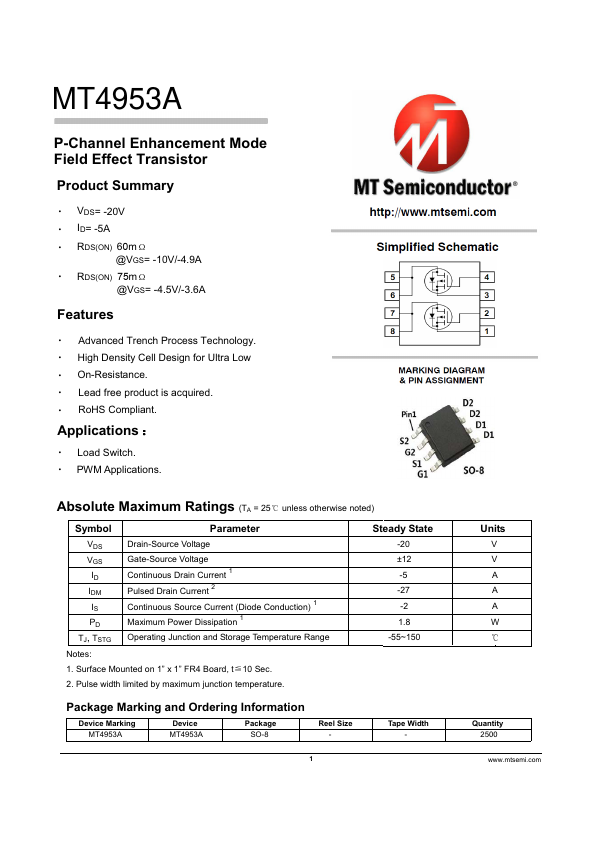

📥 Download Datasheet  Datasheet Preview Page 1

Description

 MT4953A P-Channel Enhancement Mo de  Field Effect Transistor Product Summary ‡ VDS= -20V ‡ ID= -5A ‡ RDS(ON) 60m @VGS= -10V/-4.9A ‡ RDS(O.

📥 Download Datasheet

Preview of MT4953A PDF

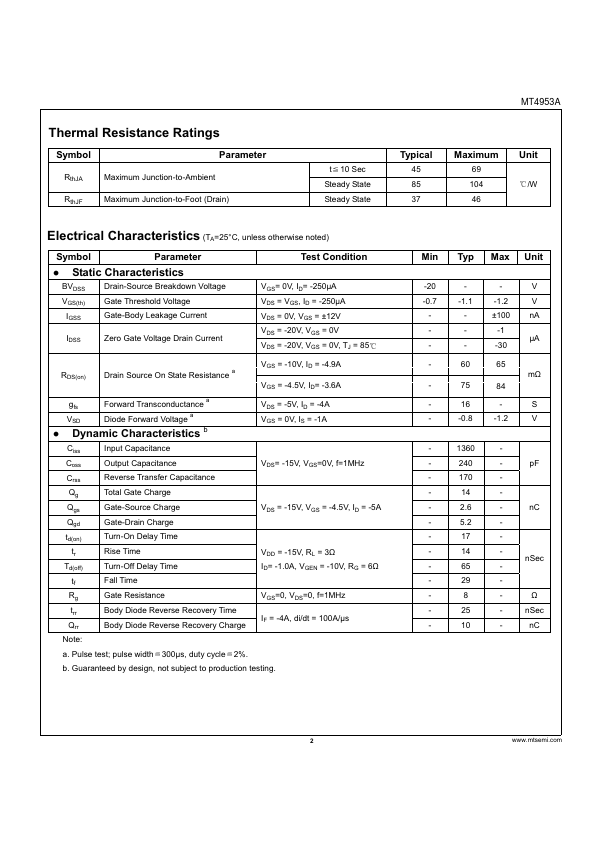

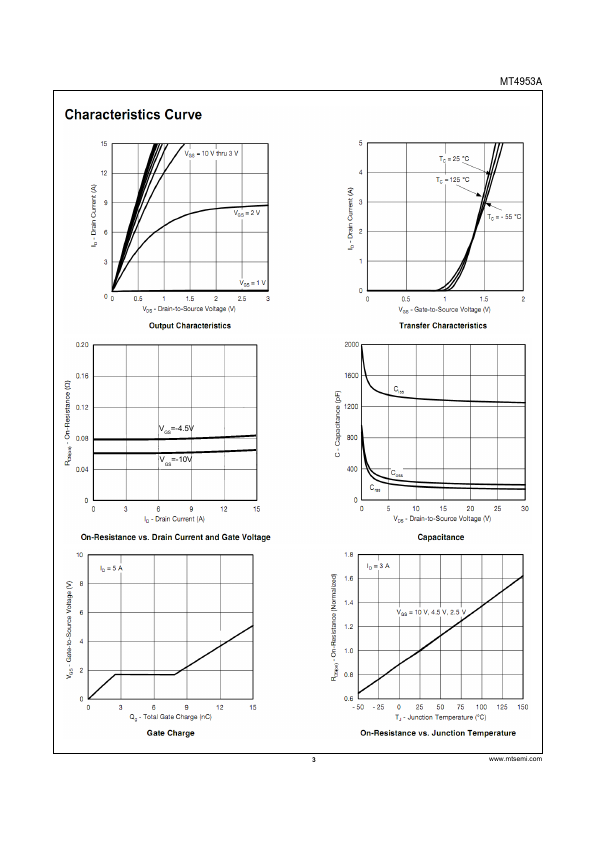

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MT4953A
Manufacturer
MOS TECH
File Size
0.99 MB
Datasheet
MT4953A_MOSTECH.pdf
Description
Dual 30 P-Channel Power MOSFET

Applications

* ˖ ‡ Load Switch. ‡ PWM Applications. Absolute Maximum Ratings (TA = 25 unless otherwise noted) Symbol Parameter VDS VGS ID IDM IS PD TJ, TSTG Drain-Source Voltage Gate-Source Voltage Continuous Drain Current 1 Pulsed Drain Current 2 Continuous Source Current (Diode Conduction) 1 Maximum Power D
