MT4953A1 - P-Channel MOSFET

MT4953A1 Description

 MT4953A1 P-Channel Enhancement Mo de  Field Effect Transistor Product Summary ‡ VDS= -20V ‡ ID= -4.5A ‡ RDS(ON) = 80m @VGS= -10V/-4.5A ‡ .

MT4953A1 Applications

* ˖ ‡ Load Switch. ‡ PWM Applications. Absolute Maximum Ratings (TA = 25 unless otherwise noted) Symbol Parameter VDS Drain-Source Voltage VGS ID IDM IS PD TJ, TSTG Gate-Source Voltage Continuous Drain Current 1 Pulsed Drain Current 2 Continuous Source Current (Diode Conduction) 1 Maximum Power

📥 Download Datasheet

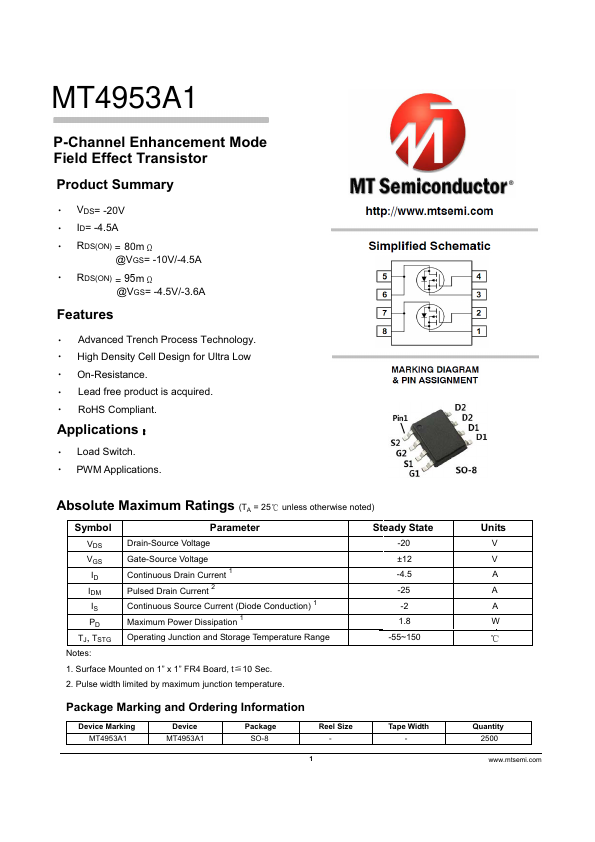

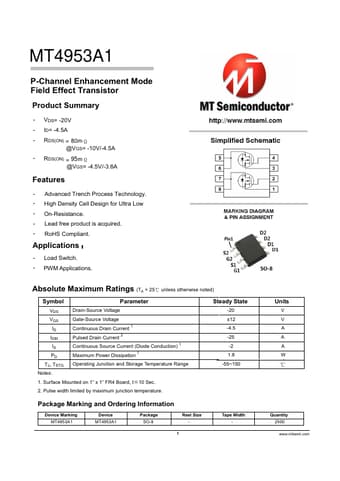

Preview of MT4953A1 PDF

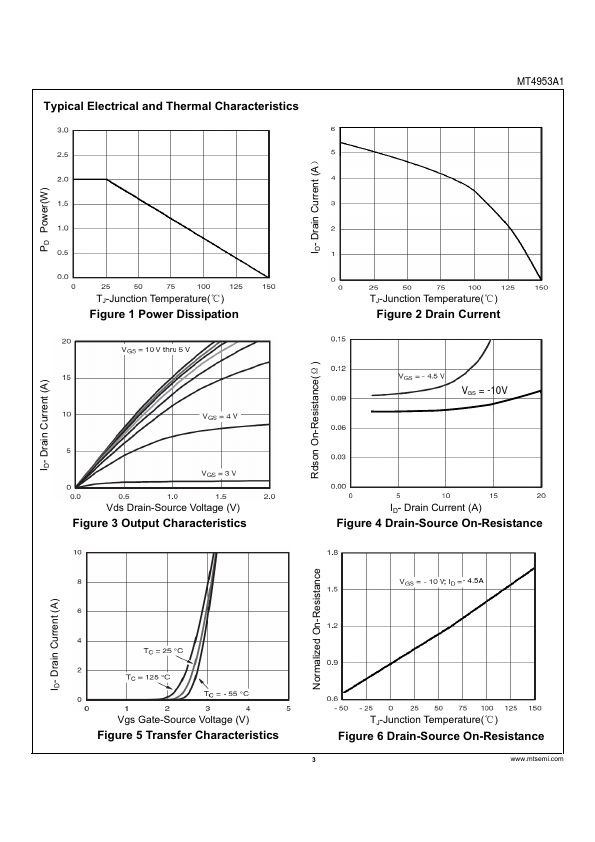

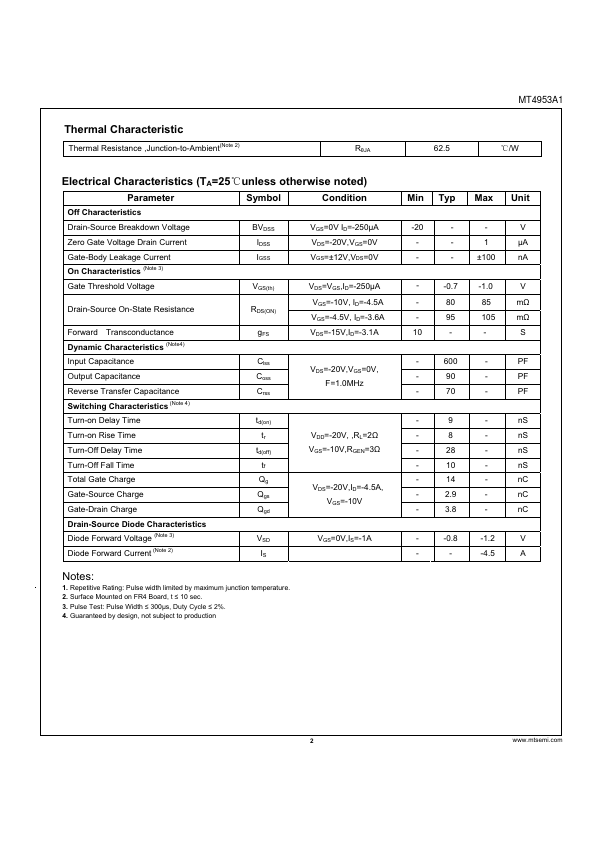

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT4953A1
Manufacturer
MT Semiconductor
File Size
685.87 KB
Datasheet
MT4953A1-MTSemiconductor.pdf
Description
P-Channel MOSFET
