MP3418 400mA Step-up Converter

📥 Download Datasheet  Datasheet Preview Page 1

Description

The Future of Analog IC Technology MP3418 400mA, 1.2MHz, Synchronous, Step-up Converter with Output Disconnect .
The MP3418 is a high-efficiency, synchronous, current. mode, step-up converter with output disconnect.

📥 Download Datasheet

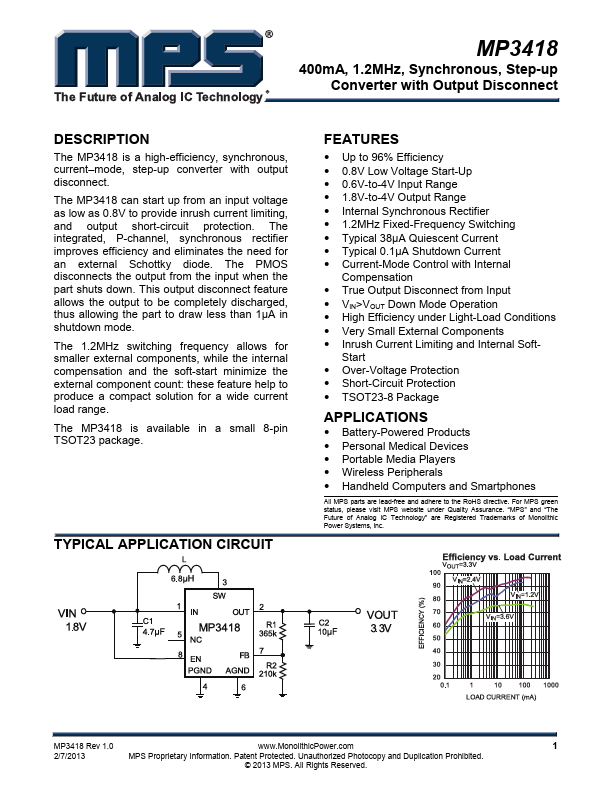

Preview of MP3418 PDF

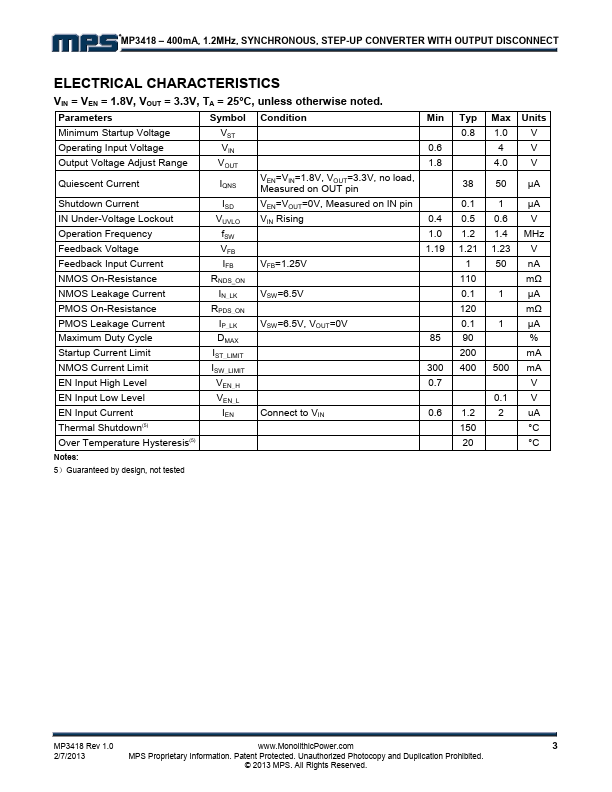

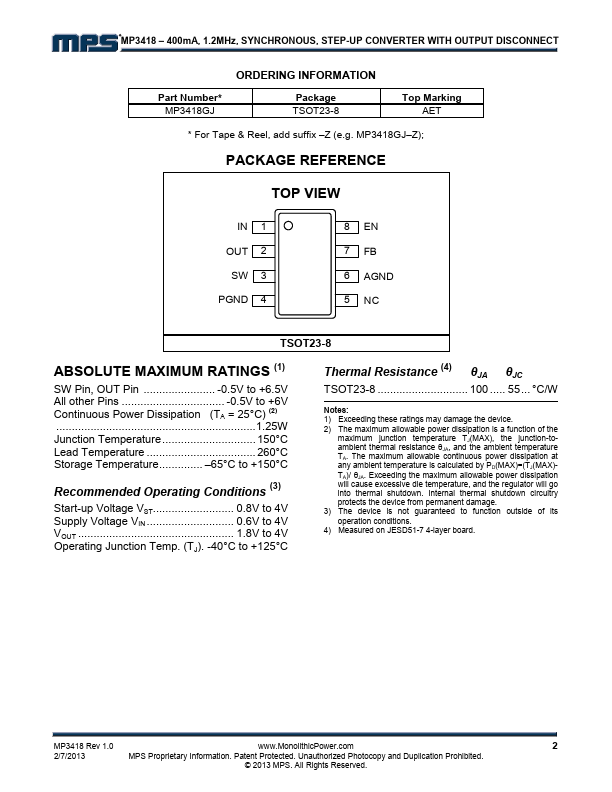

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MP3418
Manufacturer
MPS
File Size
745.70 KB
Datasheet
MP3418-MPS.pdf
Description
400mA Step-up Converter

Features

* Up to 96% Efficiency
* 0.8V Low Voltage Start-Up
* 0.6V-to-4V Input Range
* 1.8V-to-4V Output Range
* Internal Synchronous Rectifier
* 1.2MHz Fixed-Frequency Switching
* Typical 38µA Quiescent Current
* Typical 0.1µA Shutdown Current

Applications

* Battery-Powered Products
* Personal Medical Devices
* Portable Media Players
* Wireless Peripherals
* Handheld Computers and Smartphones All MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Qualit
