MPQ2484GF-AEC1, MPQ2484 Multi-Topology LED Controller

MPQ2484GF-AEC1 Description

.
The MPQ2484 is a flexible, multi-topology, asynchronous controller for LED lights with a high brightness.

MPQ2484GF-AEC1 Features

* a wide 4.5V to 45V input voltage (VIN) range, with a maximum boost voltage up to 75V. Peak current mode operation provides fast transient response and eases loop stabilization. The switching frequency (fSW) can be set by the FSET pin, or it can be synchronized by a 100kHz to 2.2MHz external clock si

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MPQ2484GF-AEC1, MPQ2484. Please refer to the document for exact specifications by model.

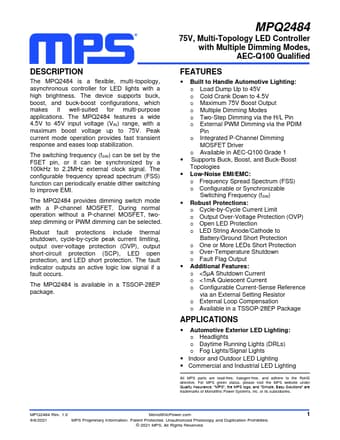

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ2484GF-AEC1, MPQ2484
Manufacturer
MPS
File Size
1.93 MB
Datasheet
MPQ2484-MPS.pdf
Description
Multi-Topology LED Controller
Note
This datasheet PDF includes multiple part numbers: MPQ2484GF-AEC1, MPQ2484.
Please refer to the document for exact specifications by model.
