NB650GL

Synchronous Step-Down Converter

NB650GL Features

* include short-circuit protection, over-current protection, over-voltage protection, under-voltage protection, and thermal shut down. The NB650/NB650H requires a minimal number of readily-available standard external components, and is available in a space-saving 3mm×4mm QFN17 package. FEATURES

NB650GL General Description

The NB650/NB650H is fully-integrated, highfrequency, synchronous, rectified, step-down, switch-mode converters with dynamic-output

* voltage control. It offers a very compact solution to achieve 6A of continuous output current over a wide input supply range, and has excellent load and line re.

NB650GL Datasheet (1.39 MB)

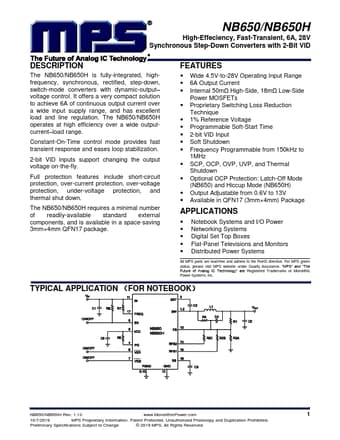

Preview of NB650GL PDF

Datasheet Details

Part number:

NB650GL

Manufacturer:

MPS

File Size:

1.39 MB

Description:

Synchronous step-down converter.
