MT8302N3 Datasheet - MT Semiconductor

MT8302N3, N-Channel MOSFET

MT8302N3 1&KDQQHO(QKDQFHPHQW0RGH)LHOG (IIHFW7UDQVLVWRU Product Summary VDS=30V ID=11A RDS(ON) 17.0m @VGS=10V RDS(ON) 19.0m @VGS=4.5V.

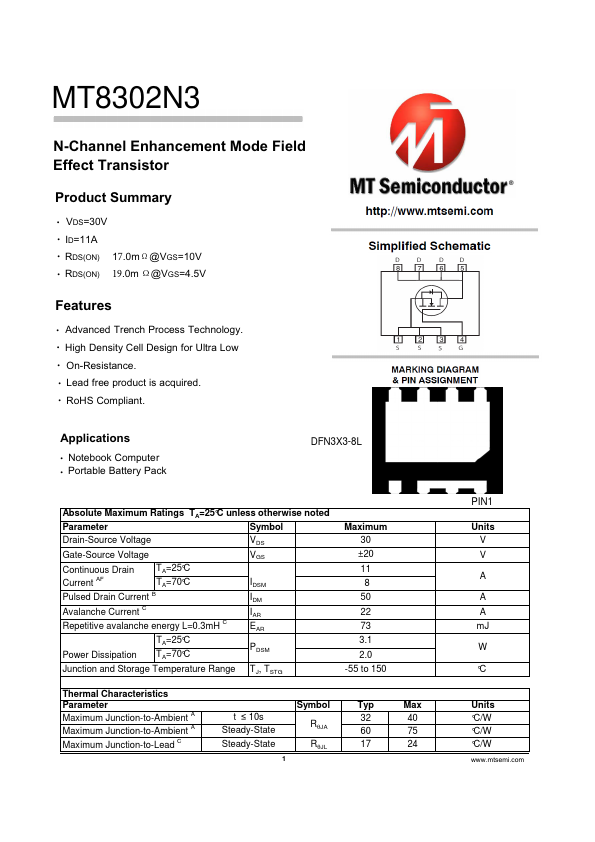

datasheet Preview Page 1 from Datasheet4u.com

MT8302N3-MTSemiconductor.pdf

MT8302N3 Datasheet Preview — Preview of MT8302N3 PDF

Datasheet Details

Part number:

MT8302N3

Manufacturer:

MT Semiconductor

File Size:

334.47 KB

Description:

N-Channel MOSFET

Features

* Advanced Trench Process Technology. High Density Cell Design for Ultra Low On-Resistance. Lead free product is acquired. RoHS Compliant. $SSOLFDWLRQV Notebook Computer Portable Battery Pack DFN3X3-8L Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-
