MT8306N3 Datasheet - MT Semiconductor

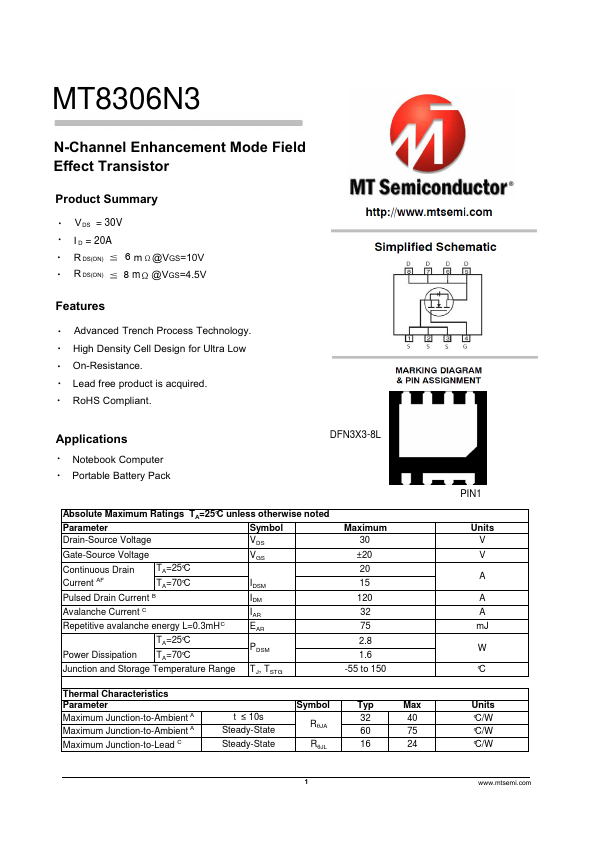

MT8306N3, N-Channel MOSFET

MT8306N3 1&KDQQHO(QKDQFHPHQW0RGH)LHOG (IIHFW7UDQVLVWRU Product Summary VDS = 30V I D = 20A R DS(ON) 6 m @VGS=10V R DS(ON) 8 .

datasheet Preview Page 1 from Datasheet4u.com

MT8306N3-MTSemiconductor.pdf

MT8306N3 Datasheet Preview — Preview of MT8306N3 PDF

Datasheet Details

Part number:

MT8306N3

Manufacturer:

MT Semiconductor

File Size:

629.42 KB

Description:

N-Channel MOSFET

Features

* Advanced Trench Process Technology. High Density Cell Design for Ultra Low On-Resistance. Lead free product is acquired. RoHS Compliant. $SSOLFDWLRQV Notebook Computer Portable Battery Pack DFN3X3-8L Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain
