MT8361N3 - Dual N- & P-Channel Power MOSFET

MT Semiconductor

📥 Download Datasheet

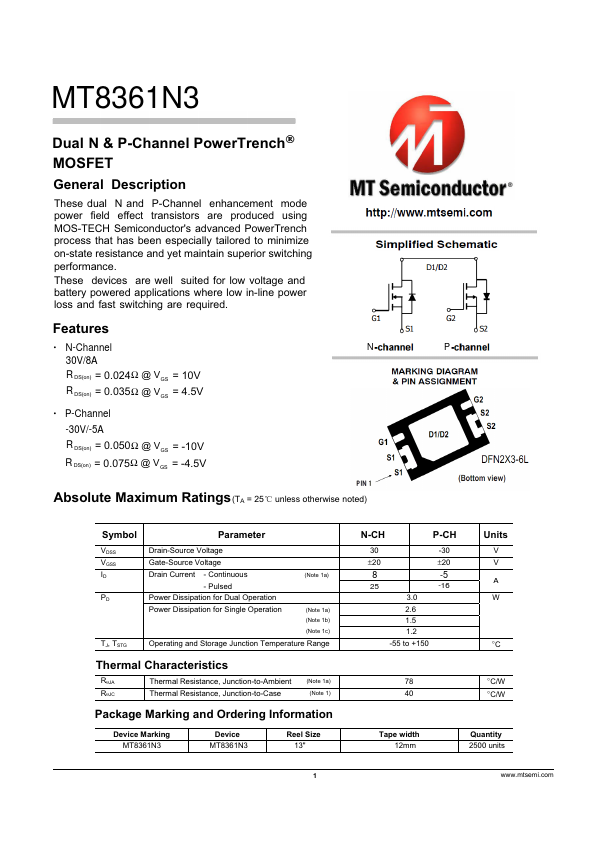

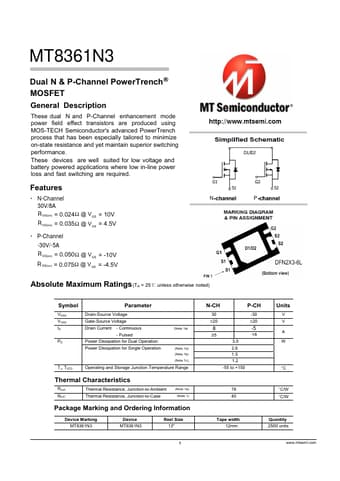

MT8361N3 Datasheet Preview — Preview of MT8361N3 PDF

datasheet Preview Page 2

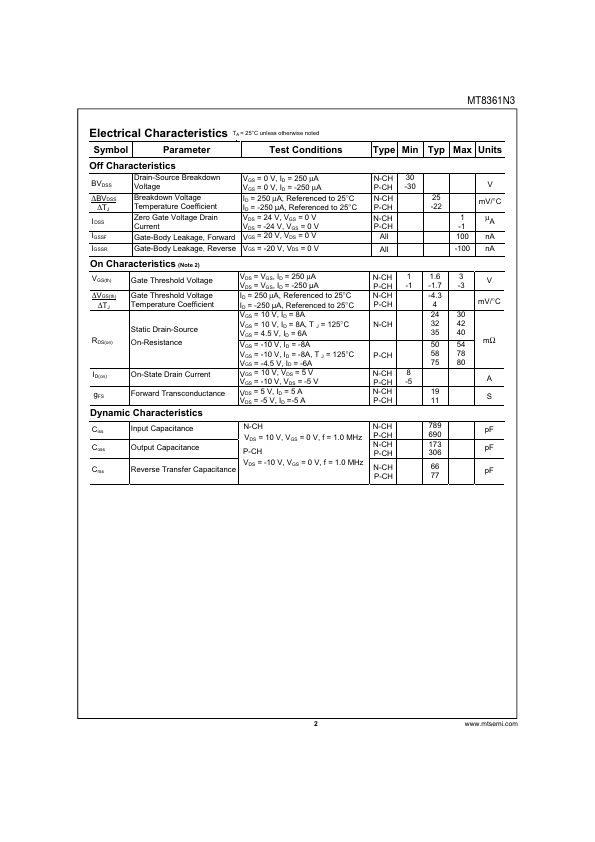

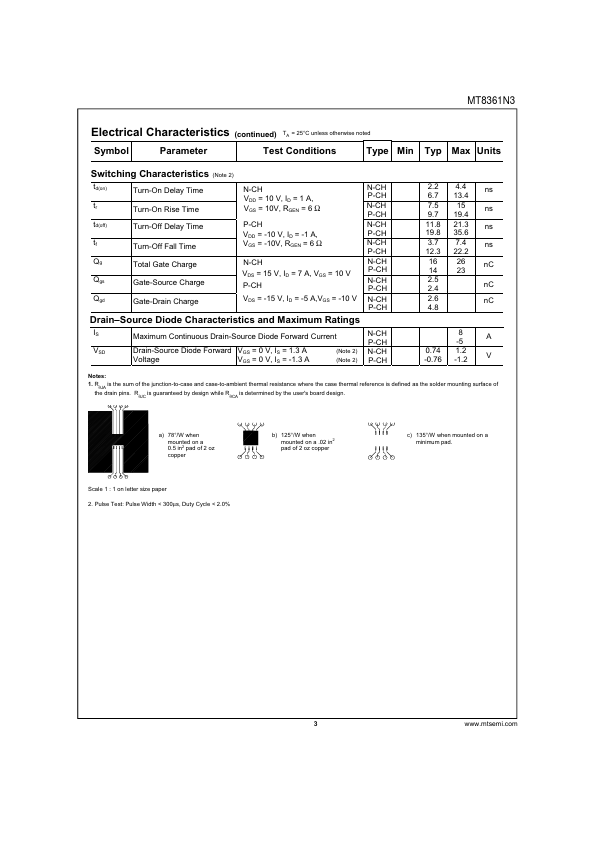

datasheet Preview Page 3

Datasheet Details

Part number	MT8361N3
Manufacturer	MT Semiconductor
File Size	1.29 MB
Description	Dual N- & P-Channel Power MOSFET
Datasheet	MT8361N3-MTSemiconductor.pdf

MT8361N3 Product details

Features

N-Channel N 30V/8A R DS(on) = 0.024Ω @ VGS = 10V R DS(on) = 0.035Ω @ VGS = 4.5V P-Channel -30V/-5A R DS(on) = 0.050Ω @ VGS = -10V R DS(on) = 0.075Ω @ VGS = -4.5V Absolute Maximum Ratings(TA = 25 unless otherwise noted) P Symbol VDSS VGSS ID PD TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Drain Current - Continuous - Pulsed (Note 1a) Power Dissipation for Dual Operation Power Dissipation for Single Operation (Note 1a) (Note 1b) (Note 1c) Operating and Storag.
