MwT-5F

Dual Gate GaAs FET

MwT-5F Features

* 21 dBm P1dB at 12 GHz

* 19 dB Small Signal Gain at 12 GHz

* 0.25 Micron Refractory Metal/Gold Gate

* Excellent for High Gain and High Linear Amplifier Applications

* Ideal for Commercial, Military, Hi-Rel Space Applications

* 300 Micron Dual Gate Wi

MwT-5F General Description

The MwT-5F is a dual gate GaAs MESFET device whose nominal 0.25 micron gate length and 300 micron dual gate width make it ideally suited to applications requiring high gain and high linearity in the 500 MHz to 26 GHz frequency range. MwT-5F is equally effective for either wideband (e.g. 2 to 26 GH.

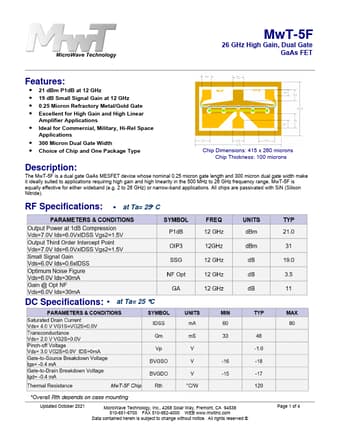

MwT-5F Datasheet (1.30 MB)

Preview of MwT-5F PDF

Datasheet Details

Part number:

MwT-5F

Manufacturer:

MWT

File Size:

1.30 MB

Description:

Dual gate gaas fet.
