MwT-PH11FV

12-GHz High Power AlGaAs/InGaAs pHEMT

MwT-PH11FV Features

* 33 dBm of Power at 12 GHz

* 12 dB Small Signal Gain at 12 GHz

* 45% PAE at 12 GHz

* 0.25 x 2400 Micron Refractory Metal/Gold Gate

* Excellent for High Power, and High Power Added Efficiency

* Ideal for Commercial, Military, Hi-Rel Space Application

MwT-PH11FV General Description

The MwT-PH11F is a AlGaAs/InGaAs pHEMT (Pseudomorphic-High-Electron-Mobility-Transistor) device whose nominal 0.25 micron gate length and 2400 micron gate width make it ideally suited for applications requiring high power and high power added efficiency up to 12 GHz frequency range. The device is .

MwT-PH11FV Datasheet (1.86 MB)

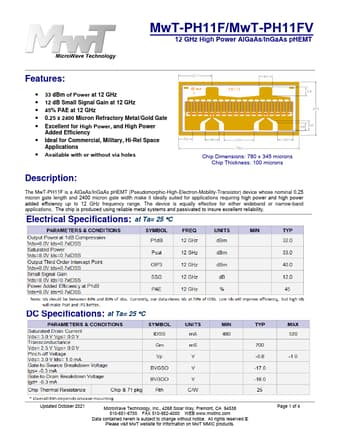

Preview of MwT-PH11FV PDF

Datasheet Details

Part number:

MwT-PH11FV

Manufacturer:

MWT

File Size:

1.86 MB

Description:

12-ghz high power algaas/ingaas phemt.
