MwT-PH11F Datasheet, Phemt, MWT

MwT-PH11F Features

• Phemt
• 33 dBm of Power at 12 GHz
• 12 dB Small Signal Gain at 12 GHz
• 45% PAE at 12 GHz
• 0.25 x 2400 Micron Refractory Metal/Gold Gate
• Excellent

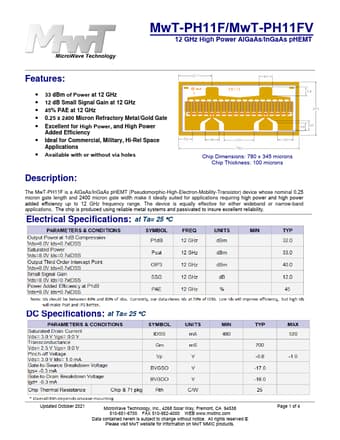

PDF File Details

Part number:

MwT-PH11F

Manufacturer:

MWT

File Size:

1.86MB

Download:

📄 Datasheet

Description:

12-ghz high power algaas/ingaas phemt. The MwT-PH11F is a AlGaAs/InGaAs pHEMT (Pseudomorphic-High-Electron-Mobility-Transistor) device whose nominal 0.25 micron gate leng

MwT-PH11F Application

• Applications
• Available with or without via holes Chip Dimensions: 780 x 345 microns Chip Thickness: 100 microns Description: The MwT-PH
