MwT-7F - 26GHz Medium Power GaAs FET

The MwT-7F is a GaAs MESFET device whose nominal 0.25 micron gate length and 250 micron gate width make it ideally suited to applications requiring high-gain and medium linear power in the 500 MHz to 26 GHz frequency range.

MwT-7F is equally effective for either wideband (e.g., 6 to 18 GHz) or nar

MwT-7F Features

* 21 dBm Output Power at 12 GHz

* 15 dB Small Signal Gain at 12 GHz

* Excellent for High Linear Gain or Oscillator Applications

* Ideal for Commercial, Military, Hi-Rel Space Applications

* 0.25 Micron Refractory Metal/Gold Gate

* 250 Micron Gate Widt

MwT-7F-MWT.pdf

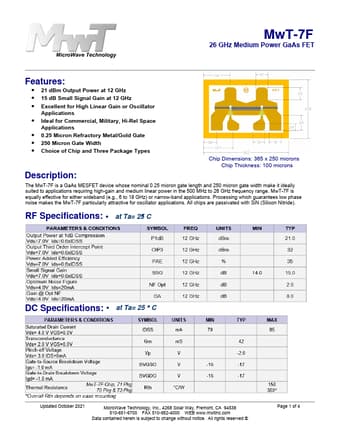

Preview of MwT-7F PDF
MwT-7F Datasheet Preview Page 2 MwT-7F Datasheet Preview Page 3

Datasheet Details

Part number:

MwT-7F

Manufacturer:

MWT

File Size:

1.34 MB

Description:

26ghz medium power gaas fet.
