Part number:
MX27C1001
Manufacturer:
Macronix International
File Size:
117.97 KB
Description:
1m-bit [128k x 8] cmos eprom.

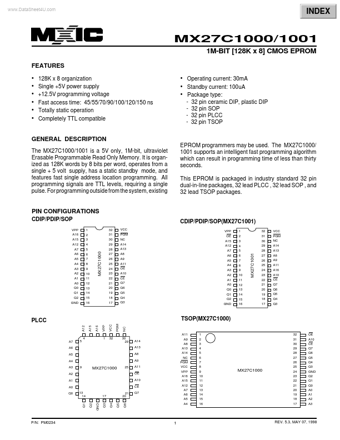

MX27C1001 Datasheet (117.97 KB)
* 128K x 8 organization Single +5V power supply +12.5V programming voltage Fast access time: 45/55/70/90/100/120/150 ns Totally static operation Completely TTL compatible
* Operating current: 30mA
* Standby current: 100uA
MX27C1001 Datasheet (117.97 KB)
MX27C1001
Macronix International
117.97 KB
1m-bit [128k x 8] cmos eprom.
