MA5601

38V Synchronous Buck Converter

MA5601 Features

* - Wide 8V to 38V Operating Input Range - Integrated 140mΩ Power MOSFET Switches - Output Adjustable from VFB(1V) to 20V - Up to 93% Efficiency - Internal Soft-Start - Stable with Low ESR Ceramic Output Capacitors - Fixed 160KHz Frequency - Cycle-by-Cycle Over Current Protection - Input Under/Over Vo

MA5601 General Description

The MA5601 is a monolithic synchronous buck regulator. The device integrates two internal power MOSFETs, and provides 2.5A of continuous load current over a wide input voltage of 8V to 38V. Current mode control provides fast transient response and cycle-by-cycle current limit. An internal soft-star.

MA5601 Datasheet (656.95 KB)

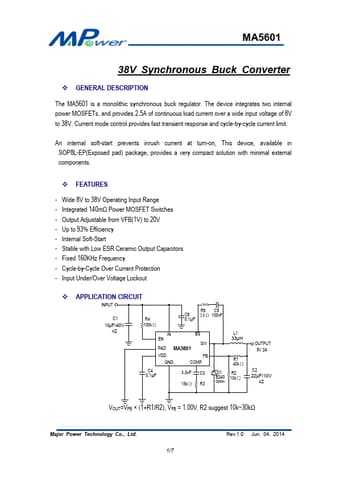

Preview of MA5601 PDF

Datasheet Details

Part number:

MA5601

Manufacturer:

Major Power Technology

File Size:

656.95 KB

Description:

38v synchronous buck converter.
