MA5604

38V 5A Synchronous Buck Converter

MA5604 Features

* Wide 8V to 38V Operating Input Range Integrated 90mΩ high side Power MOSFET Switches Output Adjustable from VFB(1V) to 20V Up to 95% Efficiency Internal Soft-Start Stable with Low ESR Ceramic Output Capacitors Fixed 160KHz Frequency Cycle-by-Cycle Over Current Protection Input Under/Over Voltage Lo

MA5604 General Description

The MA5604 is a monolithic synchronous buck regulator. The device integrates internal high side and external low side power MOSFETs, and provides 5A of continuous load current over a wide input voltage of 8V to 38V. Current mode control provides fast transient response and cycle-by-cycle current li.

MA5604 Datasheet (716.50 KB)

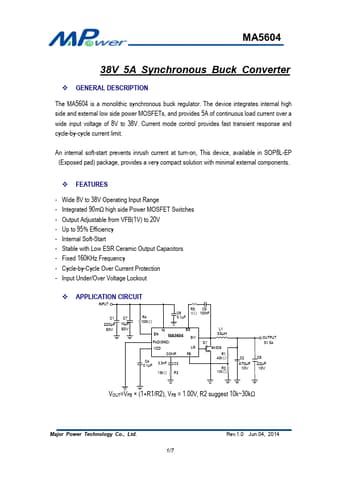

Preview of MA5604 PDF

Datasheet Details

Part number:

MA5604

Manufacturer:

Major Power Technology

File Size:

716.50 KB

Description:

38v 5a synchronous buck converter.
