MA5611 Datasheet, Converter, Major Power Technology

MA5611 Features

  • Converter - Wide 8V to 36V Operating Input Range - Integrated 120mΩ Power MOSFET Switches - Output Adjustable from VFB(1V±2%) to 16V - Up to 93% Efficiency - Internal Soft-Start t and Fixed 160KH

PDF File Details

Part number:

MA5611

Manufacturer:

Major Power Technology

File Size:

443.31kb

Download:

📄 Datasheet

Description:

36v synchronous buck converter. The MA5611 is a monolithic synchronous buck regulator. The device integrates two internal power MOSFETs, and provides 2.5A of continu

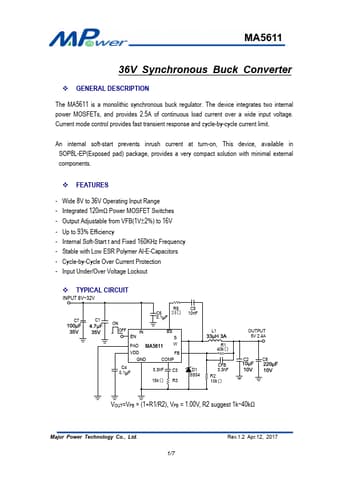

Datasheet Preview: MA5611 📥 Download PDF (443.31kb)
Page 2 of MA5611 Page 3 of MA5611
