MA5602 - 38V Synchronous Buck Converter

Product Overview

Datasheet Details

Part number	MA5602
Manufacturer	Major Power Technology
File Size	302.82 KB
Description	38V Synchronous Buck Converter
Datasheet	MA5602 Datasheet

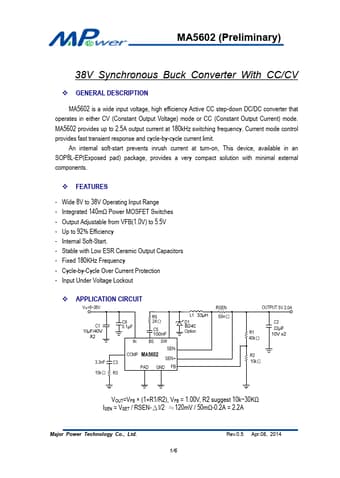

Additional preview pages of the MA5602 datasheet.

Product details

Description

MA5602 is a wide input voltage, high efficiency Active CC step-down DC/DC converter that operates in either CV (Constant Output Voltage) mode or CC (Constant Output Current) mode.

Features

Wide 8V to 38V Operating Input Range Integrated 140mΩ Power MOSFET Switches Output Adjustable from VFB(1.0V) to 5.5V Up to 92% Efficiency Internal Soft-Start. Stable with Low ESR Ceramic Output Capacitors Fixed 180KHz Frequency Cycle-by-Cycle Over Current Protection Input Under Voltage Lockout .
