MA5805

58V Asynchronous Buck Converter

MA5805 Features

* - Wide 10V to 58V Operating Input Range - 3.3V / 5V Output Voltage (for POE) - Integrated 110mΩ P-channel MOSFET Switches - Output Adjustable :VFB(1.00V±2%) - Internal Soft-Start - Fixed 500KHz Frequency - Cycle-by-Cycle Over Current Protection - Input Under/Over Voltage Lockout  APPLICATION CIRCU

MA5805 General Description

The MA5805 is a monolithic asynchronous buck regulator. The device integrates 110mΩ MOSFET, and provides 2A of continuous load current over a wide input voltage of 10V to 58V. Current mode control provides fast transient response and cycle-bicycle current limit. The internal soft-start function prev.

MA5805 Datasheet (124.72 KB)

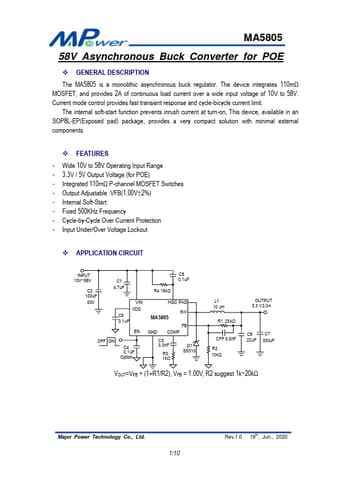

Preview of MA5805 PDF

Datasheet Details

Part number:

MA5805

Manufacturer:

Major Power Technology

File Size:

124.72 KB

Description:

58v asynchronous buck converter.
