MA5821

58V Asynchronous Buck Controller

MA5821 Features

* - Wide 10V~ 58V Operating Input Range - External High-Side P-channel MOSFET Switch - Output Adjustable : VFB(1.00V±2%) - Up to 93% Efficiency - Internal Soft-Start / Thermal Shutdown Protection - Fixed 240KHz Frequency - Cycle-by-Cycle Over Current Protection - Input Under/Over Voltage Lockout ❖ AP

MA5821 General Description

The MA5821 is an asynchronous buck controller. The device needs external high side power MOSFET and low side schottky diode, and provides 3A of continuous load current over a wide input voltage of 10V to 58V range. Current mode control provides fast transient response and cycle-bicycle current limit.

MA5821 Datasheet (168.46 KB)

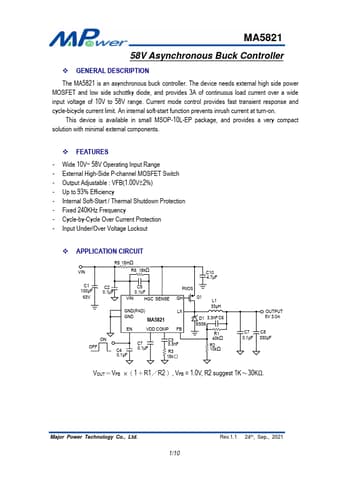

Preview of MA5821 PDF

Datasheet Details

Part number:

MA5821

Manufacturer:

Major Power Technology

File Size:

168.46 KB

Description:

58v asynchronous buck controller.
