ME7423S-G P-Channel MOSFET

ME7423S-G Description

P-Channel 30V(D-S) MOSFET GENERAL .
The ME7423S P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

ME7423S-G Features

* RDS(ON) ≦13mΩ@VGS=-10V

ME7423S-G Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch
* DSC e Ordering Information:ME7423S-G (Green product-Halogen free) Absolute Maximum Ratings (Tj=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-Source Voltage Continu

📥 Download Datasheet

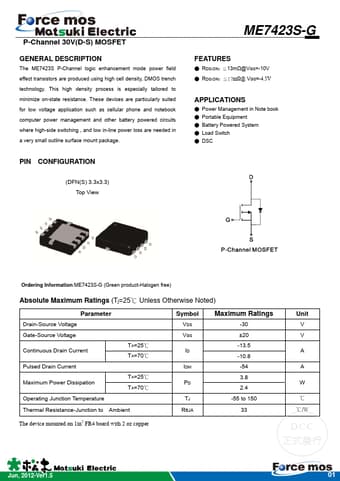

Preview of ME7423S-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME7423S-G
Manufacturer
Matsuki
File Size
1.18 MB
Datasheet
ME7423S-G-Matsuki.pdf
Description
P-Channel MOSFET
