ME8205E - Dual N-Channel MOSFET

ME8205E Description

Dual N-Channel 20V (D-S) MOSFET GENERAL .
The ME8205E is the Dual N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

ME8205E Features

* RDS(ON)≦22mΩ@VGS=4.5V
* RDS(ON)≦23mΩ@VGS=4.0V
* RDS(ON)≦26mΩ@VGS=3.0V
* RDS(ON)≦29mΩ@VGS=2.5V
* Super high density cell design for extremely low RDS(ON)

ME8205E Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* DC/DC Converter
* Load Switch

📥 Download Datasheet

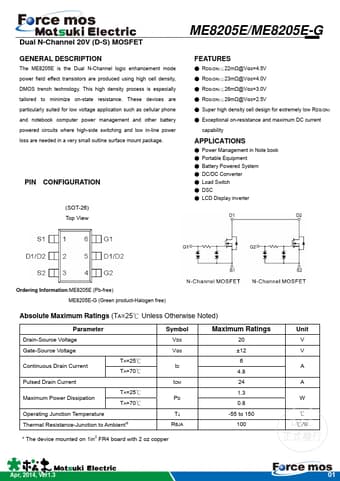

Preview of ME8205E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME8205E
Manufacturer
Matsuki
File Size
585.95 KB
Datasheet
ME8205E-Matsuki.pdf
Description
Dual N-Channel MOSFET
