MEBSS138D-G, MEBSS138D Datasheet - Matsuki

MEBSS138D-Matsuki.pdf

This datasheet PDF includes multiple part numbers: MEBSS138D-G, MEBSS138D. Please refer to the document for exact specifications by model.

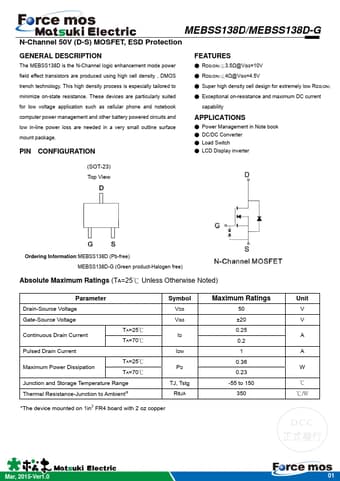

MEBSS138D-G Datasheet Preview Page 2 MEBSS138D-G Datasheet Preview Page 3

Datasheet Details

Part number:

MEBSS138D-G, MEBSS138D

Manufacturer:

Matsuki

File Size:

1.08 MB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: MEBSS138D-G, MEBSS138D.
Please refer to the document for exact specifications by model.

MEBSS138D-G, MEBSS138D, N-Channel MOSFET

The MEBSS138D is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

These devices are particularly suited for low voltage application such

MEBSS138D-G Features

* RDS(ON)≦3.5Ω@VGS=10V

* RDS(ON)≦4Ω@VGS=4.5V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability APPLICATIONS

* Power Management in Note book

* DC/DC Converter

* Load Switch

* LCD Display inverter (
