MEBSS138DK-G, MEBSS138DK, N-Channel MOSFET

MEBSS138DK/MEBSS138DK-G N-Channel 50V (D-S) MOSFET, ESD Protection GENERAL .
The MEBSS138DK is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

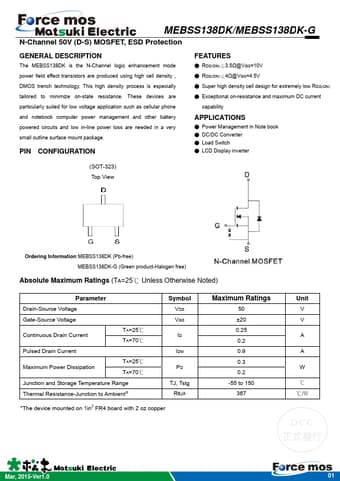

datasheet Preview Page 1 from Datasheet4u.com

MEBSS138DK-Matsuki.pdf

MEBSS138DK-G Datasheet Preview — This datasheet PDF includes multiple part numbers: MEBSS138DK-G, MEBSS138DK. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MEBSS138DK-G, MEBSS138DK

Manufacturer:

Matsuki

File Size:

959.33 KB

Description:

N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: MEBSS138DK-G, MEBSS138DK.
Please refer to the document for exact specifications by model.

Features

* RDS(ON)≦3.5Ω@VGS=10V
* RDS(ON)≦4Ω@VGS=4.5V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter (SOT-323) Top View Ordering Information:MEBSS138DK (Pb-free) MEBSS138DK-G (Green product-Halogen free) Absolute M
