XR22800 - Hi-Speed USB to 10/100 Ethernet Bridge

Name: XR22800
SKU: XR22800-1302729

MaxLinear

📥 Download Datasheet

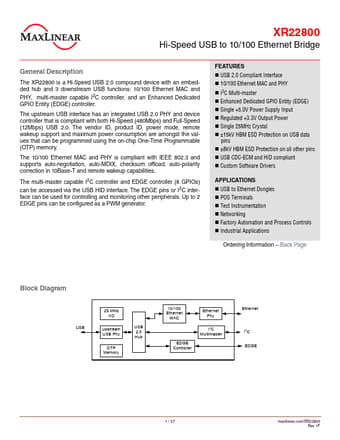

XR22800 Datasheet Preview — Preview of XR22800 PDF

Datasheet Details

Part number	XR22800
Manufacturer	MaxLinear
File Size	700.80 KB
Description	Hi-Speed USB to 10/100 Ethernet Bridge
Datasheet	XR22800-MaxLinear.pdf

XR22800 Product details

Description

The XR22800 is a Hi-Speed USB 2.0 compound device with an embedded hub and 3 downstream USB functions: 10/100 Ethernet MAC and PHY, multi-master capable I2C controller, and an Enhanced Dedicated GPIO Entity (EDGE) controller.

Features

USB 2.0 Compliant Interface.
10/100 Ethernet MAC and PHY.
I2C Multi-master.
Enhanced Dedicated GPIO Entity (EDGE).
Single +5.0V Power Supply Input.
Regulated +3.3V Output Power.
Single 25MHz Crystal.
±15kV HBM ESD Protection on USB data pins.
±8kV HBM ESD Protection on all other pins.
USB CDC-ECM and HID compliant.
Custom Software Drivers.
