MXD8529A Datasheet - Maxscend

0.1-3.0GHz SPDT Antenna Tuning Switch

MXD8529A Features

* Broadband frequency range: 0.1 to 3.0 GHz

* Low insertion 0.30dB @ 2.7 GHz

* High P0.1dB of 43dBm

* Positive low voltage control: VC = 1.0 to 3.0 V, VDD = 2.5 to 3.0 V, Small, QFN (8-pin, 1.385mm x 1.485mm x 0.45mm) package ， MSL1 Functional Block Diagram and Pin Function Figure

MXD8529A General Description

The MXD8529A is a CMOS silicon-on-insulator (SOI), single-pole, double-throw (SPDT) switch. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for GSM/WCDMA/LTE handset antenna tuning application. The MXD8529A SPDT switch is provided in a .

MXD8529A Datasheet (894.98 KB)

Preview of MXD8529A PDF

Datasheet Details

Part number:

MXD8529A

Manufacturer:

Maxscend

File Size:

894.98 KB

Description:

0.1-3.0ghz spdt antenna tuning switch.

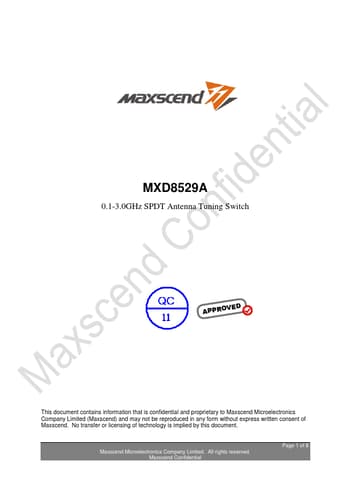

MXD8529A 0.1-3.0GHz SPDT Antenna Tuning Switch APPROVED This document contains information that is confidential and proprietary to Maxscend Microele.
