MXD8544A Datasheet - Maxscend

0.1-3.0GHz SP4T Antenna Tuning Switch

MXD8544A Features

* Broadband frequency range: 0.1 to 3.0 GHz

* Low insertion 0.50dB @ 2.7 GHz

* High P0.1dB of 43.3dBm

* Positive low voltage control: VC = 1.0 to 3.0 V, VDD = 2.5 to 3.3 V, Small LGA (10-pin, 1.1mm x 1.5mm x 0.36mm) package Functional Block Diagram and Pin Function ANT ANT RF1 RF

MXD8544A General Description

The MXD8544A is a CMOS silicon-on-insulator (SOI), single-pole, four-throw (SP4T) switch. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for GSM/WCDMA/LTE handset antenna tuning application. The MXD8544A SP4T switch is provided in a co.

MXD8544A Datasheet (750.12 KB)

MXD8544A Datasheet Preview — Preview of MXD8544A PDF

Datasheet Details

Part number:

MXD8544A

Manufacturer:

Maxscend

File Size:

750.12 KB

Description:

0.1-3.0ghz sp4t antenna tuning switch.

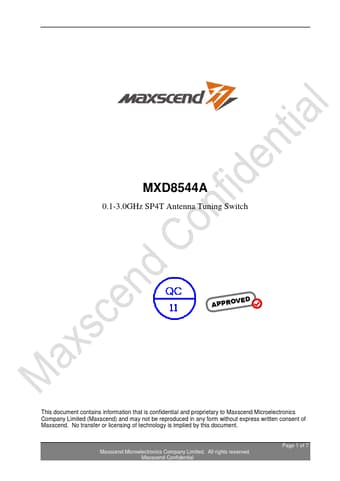

MXD8544A 0.1-3.0GHz SP4T Antenna Tuning Switch APPROVED This document contains information that is confidential and proprietary to Maxscend Microelec.
