MXD8545B - 0.1 - 3.0GHz SP4T Antenna Tuning Switch

Maxscend

📥 Download Datasheet

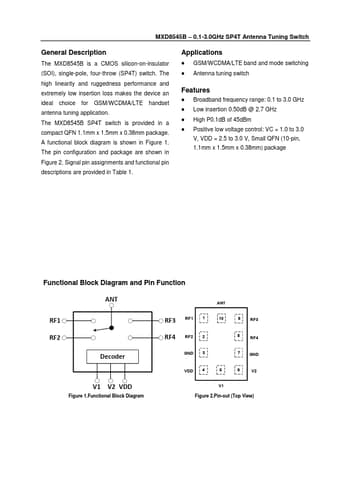

MXD8545B Datasheet Preview — Preview of MXD8545B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MXD8545B
Manufacturer	Maxscend
File Size	615.08 KB
Description	0.1 - 3.0GHz SP4T Antenna Tuning Switch
Datasheet	MXD8545B-Maxscend.pdf

MXD8545B Product details

Description

The MXD8545B is a CMOS silicon-on-insulator (SOI), single-pole, four-throw (SP4T) switch.

Features

Broadband frequency range: 0.1 to 3.0 GHz.
Low insertion 0.50dB @ 2.7 GHz.
High P0.1dB of 45dBm.
Positive low voltage control: VC = 1.0 to 3.0 V, VDD = 2.5 to 3.0 V, Small QFN (10-pin, 1.1mm x 1.5mm x 0.38mm) package Functional Block Diagram and Pin Function ANT ANT RF1 RF3 RF1 1 10 9 RF3 RF2 RF4 RF2 2 8 RF4 Decoder V1 V2 VDD Figure 1.Functional Block Diagram GND 3 7 GND VDD 4 5 6 V2 V1 Figure 2.Pin-out (Top View).
