MXD8721 Datasheet - Maxscend

0.5-6.0GHz SPDT Switch

MXD8721 Features

* Broadband frequency range: 0.5 to 6.0 GHz

* Low insertion 0.35dB @ 2.45 GHz

* Low insertion 0.55dB @ 5.8 GHz

* High P0.1dB of 32dBm

* Small, QFN (6-pin, 1.0mm x 1.0mm x 0.45mm) package，MSL1 Functional Block Diagram and Pin Function Figure 1.Functional Block Diagram Figure 2.

MXD8721 General Description

The MXD8721 is a CMOS silicon-on-insulator (SOI), single-pole, double-throw (SPDT) switch. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for WLAN applications such as 802.11 a/b/g/n. The MXD8721 SPDT switch is provided in a compact 1..

MXD8721 Datasheet (903.03 KB)

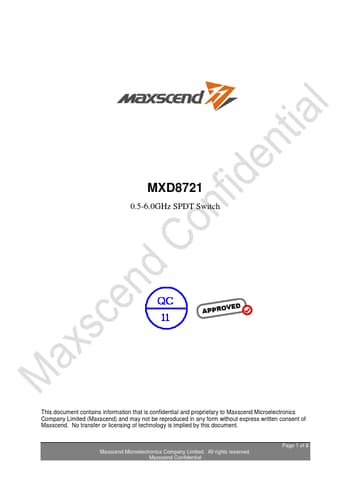

Preview of MXD8721 PDF

Datasheet Details

Part number:

MXD8721

Manufacturer:

Maxscend

File Size:

903.03 KB

Description:

0.5-6.0ghz spdt switch.
MXD8721 0.5-6.0GHz SPDT Switch APPROVED This document contains information that is confidential and proprietary to Maxscend Microelectronics Company .
