SY10ELT23 Datasheet, Translator, Micrel Semiconductor

SY10ELT23 Features

  • Translator s 3.0ns typical propagation delay s <500ps typical output-to-output skew s Differential PECL inputs s 24mA TTL outputs s Flow-through pinouts s Internal input 50kΩ pulldown resistors s

PDF File Details

Part number:

SY10ELT23

Manufacturer:

Micrel Semiconductor

File Size:

80.03kb

Download:

📄 Datasheet

Description:

Dual differential pecl-to-ttl translator. The SY10/100ELT23 are dual differential PECL-to-TTL translators. Because PECL (Positive ECL) levels are used, only +5V and ground are

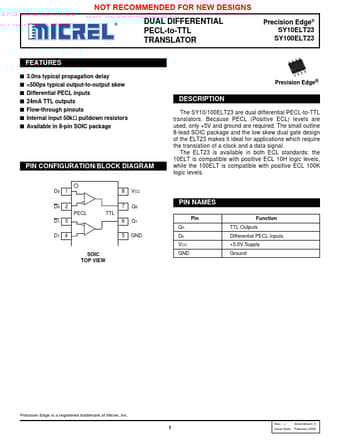

Datasheet Preview: SY10ELT23 📥 Download PDF (80.03kb)
Page 2 of SY10ELT23 Page 3 of SY10ELT23

SY10ELT23 Application

  • Applications which require the translation of a clock and a data signal. The ELT23 is available in both ECL standards: the 10ELT is compatible with
