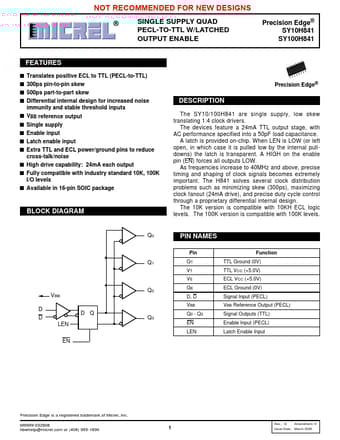

SY10H841 Datasheet, Enable, Micrel Semiconductor

SY10H841 Features

• Enable s Translates positive ECL to TTL (PECL-to-TTL) s 300ps pin-to-pin skew s 500ps part-to-part skew s Differential internal design for increased noise immunity and stable threshold inputs

PDF File Details

Part number:

SY10H841

Manufacturer:

Micrel Semiconductor

File Size:

91.31kb

Download:

📄 Datasheet

Description:

Single supply quad pecl-to-ttl w/latched output enable. The SY10/100H841 are single supply, low skew translating 1:4 clock drivers. The devices feature a 24mA TTL output stage, with AC perf
