SY89329V Datasheet, Translator, Micrel Semiconductor

SY89329V Features

  • Translator s Guaranteed AC performance over temp and voltage:
  • DC-to-800MHz fMAX
  • <100ps IN-to-OUT tpd s Ultra-low jitter design:
  • <1psRMS random jitter
  • <10ps

PDF File Details

Part number:

SY89329V

Manufacturer:

Micrel Semiconductor

File Size:

46.17kb

Download:

📄 Datasheet

Description:

Lvttl/lvcmos-to-differential lvpecl translator. The SY89329V is a TTL/CMOS-to-differential PECL translator. Capable of running from a 3.3V or 5V supply, the part can be used in eith

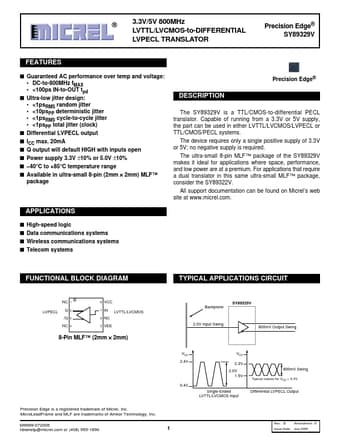

Datasheet Preview: SY89329V 📥 Download PDF (46.17kb)
Page 2 of SY89329V Page 3 of SY89329V

SY89329V Application

  • Applications where space, performance, and low power are at a premium. For applications that require a dual translator in this same ultra-small MLF™
