SY89534L

PROGRAMMABLE LVPECL AND LVDS BUS CLOCK SYNTHESIZER

SY89534L Features

* s Integrated synthesizer plus fanout buffers, clock dividers, and translator in a single 64-pin package s Accepts any reference input between 14MHz to 160MHz (single-ended or differential) s 33MHz to 500MHz output frequency range s LVPECL outputs (SY89534L) LVPECL and LVDS outputs (SY89535L) s 3.3V

SY89534L General Description

The SY89534L and SY89535L programmable clock synthesizers are a 3.3V, high-frequency, precision PLL-based family optimized for multi-frequency, large clock-tree applications that require the highest precision. These devices integrate the following blocks into a single monolithic IC:

* PLL (P.

SY89534L Datasheet (102.35 KB)

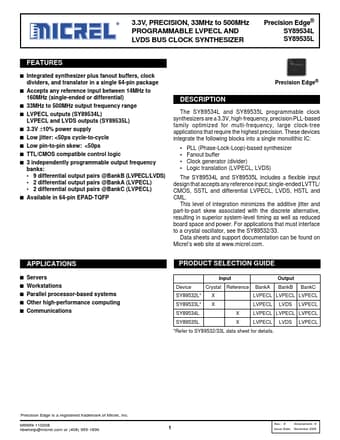

Preview of SY89534L PDF

Datasheet Details

Part number:

SY89534L

Manufacturer:

Micrel Semiconductor

File Size:

102.35 KB

Description:

Programmable lvpecl and lvds bus clock synthesizer.
