SY89536L

PROGRAMMABLE LVPECL AND HSTL BUS CLOCK SYNTHESIZER

SY89536L Features

* s Integrated synthesizer plus fanout buffers, clock dividers, and translator in a single 64-pin package s Accepts any reference input between 14MHz to 160MHz (single-ended or differential) s 33MHz to 500MHz output frequency range s LVPECL and HSTL outputs s 3.3V ±10% power supply s Low jitter:

SY89536L General Description

Precision Edge® The SY89536L programmable clock synthesizer is part of a 3.3V, high-frequency, precision PLL-based clock synthesizer family optimized for multi-frequency, large clocktree applications. This device integrates the following blocks into a single monolithic IC:

* PLL (Phase-Loc.

SY89536L Datasheet (99.60 KB)

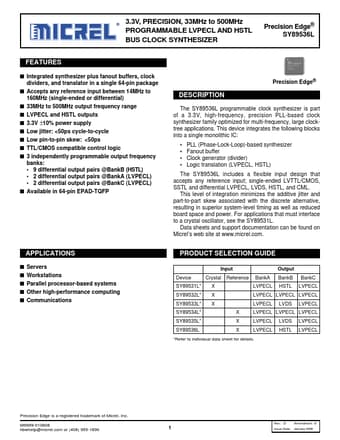

Preview of SY89536L PDF

Datasheet Details

Part number:

SY89536L

Manufacturer:

Micrel Semiconductor

File Size:

99.60 KB

Description:

Programmable lvpecl and hstl bus clock synthesizer.
Micrel, Inc. 3.3V, PRECISION, 33MHz to 500MHz PROGRAMMABLE LVPECL AND HSTL BUS CLOCK SYNTHESIZER Precision Edge® Precision ESdYg89e5®36L SY89536L F.
