SY89871U Datasheet, Buffer, Micrel Semiconductor

SY89871U Features

  • Buffer Precision Edge®
  • Two matched-delay outputs: - Bank A: undivided pass-through (QA) - Bank B: programmable divide by 2, 4, 8, 16 (QB0, QB1)
  • Matched delay: all outputs

PDF File Details

Part number:

SY89871U

Manufacturer:

Micrel Semiconductor

File Size:

653.10kb

Download:

📄 Datasheet

Description:

2.5ghz any diff. in-to-lvpecl programmable clock divider/fanout buffer. The SY89871U is a 2.5V/3.3V LVPECL output precision clock divider capable of accepting a high-speed differential clock input (AC or D

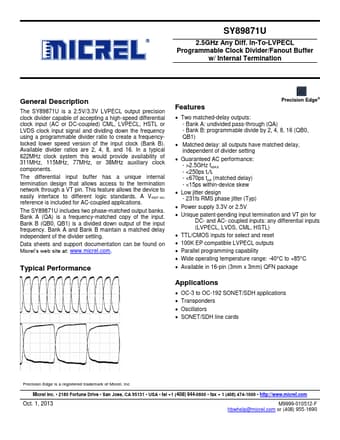

Datasheet Preview: SY89871U 📥 Download PDF (653.10kb)
Page 2 of SY89871U Page 3 of SY89871U

SY89871U Application

  • Applications The SY89871U includes two phase-matched output banks. Bank A (QA) is a frequency-matched copy of the input. Bank B (QB0, QB1) is a div
